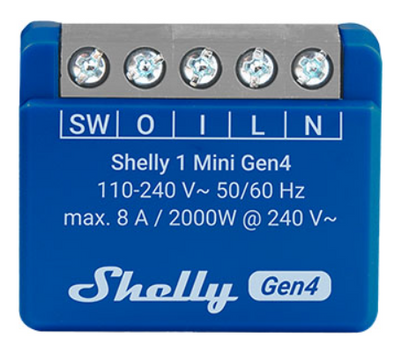

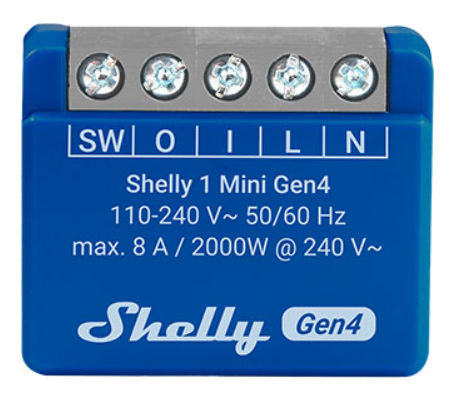

Shelly 1 Mini Gen 4

Shelly 1 Mini Gen4 - Compact Smart Switch with Zigbee, Wi-Fi & Bluetooth

Upgrade your smart home with the Shelly 1 Mini Gen4, the latest compact smart switch featuring potential-free contacts, Zigbee connectivity, and an improved processor. This enhanced version of the Shelly 1 Mini Gen3 allows seamless control of electrical appliances via a mobile phone, tablet, PC, or home automation system. It operates independently on a local Wi-Fi network or connects to cloud home automation platforms, ensuring flexible remote management.

Key Features

• Wi-Fi, Zigbee & Bluetooth Connectivity - Ensures reliable communication and flexibility in smart home setups.

• Matter Compatibility - Works with the latest smart home standard for seamless integration.

• Remote Control & Monitoring - Manage appliances from anywhere with internet access.

• Dry Contact Relay - Control low-voltage devices effortlessly.

• Compact Size - Easily fits into standard electrical wall boxes, behind power sockets, and light switches.

• Embedded Web Interface - Monitor and configure the device with ease.

• BLE Gateway & Zigbee Range Extender - Expand your smart home network.

• Smart Home Platform Integration - Compatible with Google Assistant, Amazon Alexa, and Samsung SmartThings.

• Schedules & Automation - Set up time-based automations for a smarter home experience.

Use Cases

• Smart Appliance Control - Turn electric appliances on/off remotely.

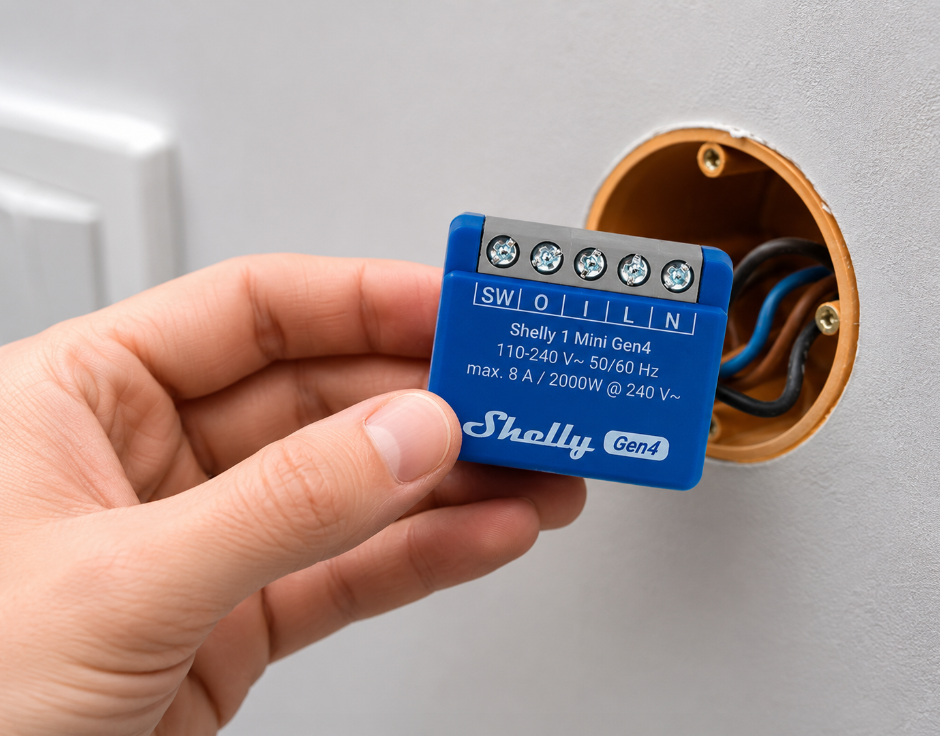

• Space-Saving Retrofitting - Install behind existing switches and sockets.

• Home Automation - Enhance your smart home ecosystem with automated controls.

• Wi-Fi & Zigbee Extender - Strengthen your home automation network.

Technical Specifications

Electrical

• Power Supply: 110-240V AC

• Relay: Dry, NO contact

• Max Output Power: 2000W (240V AC) / 150W (30V DC)

• Power Consumption: <1.2W

• External Protection: 10A max rated current

Connectivity

• Wi-Fi: 802.11 b/g/n/ax, up to 50m range outdoors

• Bluetooth 5.0: BLE Gateway enabled, up to 30m range

• Zigbee: 802.15.4, up to 300m range outdoors

User Interface

• Reset Button for manual operation

• LED Status Indicators for easy troubleshooting

Physical & Environmental

• Dimensions: 29x34x16 mm

• Operating Temperature: -20°C to 40°C

• Mounting: Standard electrical wall box

• Material: Durable plastic shell

Integration & Automation

• Supported Platforms: Google Home, Alexa, Samsung SmartThings

• APIs & Protocols: HTTP API, MQTT, Web Hooks (HTTP/HTTPS), KNX net/IP

• Advanced Features: Scripting, Virtual Components, Over-the-Air (OTA) Updates

Package Includes:

• 1x Shelly 1 Mini Gen4

• User Manual
