Shelly

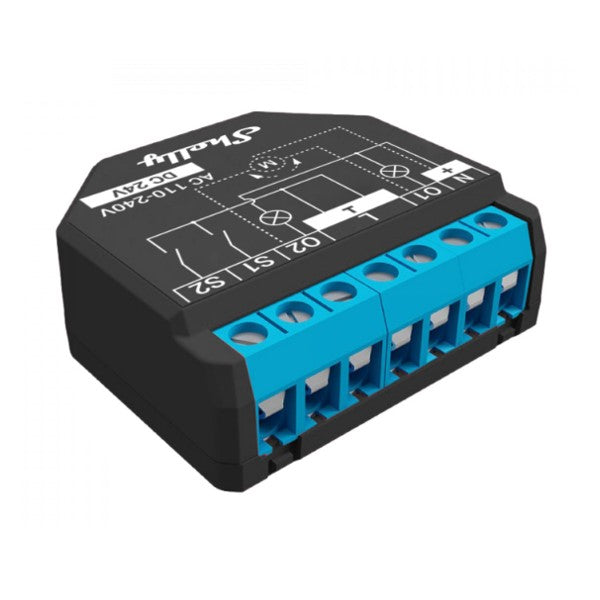

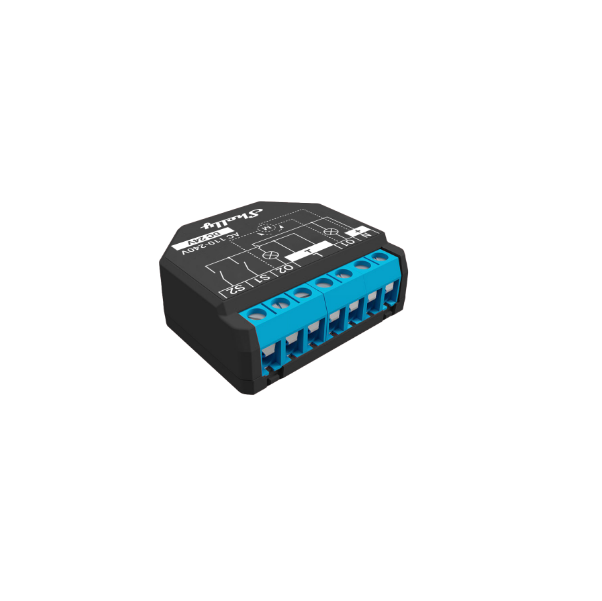

Shelly Plus 2PM

Shelly Plus 2PM

$36.00 AUD
$45.00 AUD $36.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • We use Australia Post Carbon Neutral Shipping: 2-5 Days $9.99, 1-3 Days $15 or StarTrack Premium $20
  • Order before Midday and we Dispatch the same day
  • Found a Cheaper Price we will Match it

2 channel Wi-Fi relay with power metering and cover (roller) control

Shelly Plus 2PM is a one-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.

Shelly Plus 2PM

  • Wi-Fi operated – Connects to your Wi-Fi network. No HUB required!
  • Bluetooth – Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
  • 2 channels on the same phase
  • Power metering on each channel
  • Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, other bi-directional motors
  • Wide range of voltage support
  • Scripting, schedules and webhooks

ONE DEVICE – DIFFERENT POSSIBILITIES

2 Channel Smart Relay

Automate lights and monitor their real-time power consumption

Cover (Roller) Control

Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors


CURTAINS THAT FOLLOW YOUR SCHEDULE

Shelly Plus 2PM supports cover control, which makes it perfect for automating curtains, roller shutters, garage doors, awnings, gates, and any other two-directional motor in your home. Use the “Schedules” function to create the perfect morning/evening routines by setting Shelly Plus 2PM to open/close the curtains in your home at pre-set hours every day. Additionally, precise position control allows you to set the desired intermediate position of your curtains in percent (%).


FUNCTIONALITIES

Wi-Fi operated

Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required


Bluetooth

Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App


Extremely fast processor

For immediate command execution and notification (ESP32

Cover (roller) control

Control two-directional AC motors and set your desired position


Enhanced safety

Enhanced over-temperature protection with software thresholds for control and prevention of failures


Power metering with data storage

Two integrated precise power meters allow you to monitor the consumption for each channel


Wide range of voltage support

Can be powered by 110-240V AC & 24V DC, and supports up to 10A per channel and 16A total


Improved API interface

Broad range of cloud connections and local integrations with much lower integration cost



Specification


POWER
Power supply AC 110 – 240 V, 50/60 Hz
Power supply DC 24 V ±10%,
Channels 2 channels
Max. current per channel 10 A
Max total device current 16 A (18 A peak)
Max. switching voltage 240 VAC / 30 VDC
Device power consumption < 1.4 W
SPECIAL FUNCTIONS
Cover (roller) control Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, pool covers, garage door, bi-directional AC motors
Overload protection Yes
Overtemperature protection Yes
Power measurement Yes (AC only)
Working without a neutral line No
Dry contacts No
FEATURES
HTTP/HTTPS webhooks Yes
Custom scripts (mJs) Yes
Ambient temperature -20 °C to + 40 °C
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL listed option No
CONNECTIVITY
Wireless/Wi-Fi Protocol 802.11 b/g/n
Radio frequency 2400 – 2500 MHz
Radio signal power 1 mW
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth Yes
DIMENSIONS
Size 42x38x17 mm



Shelly Plus 2PM User guide

Shelly Plus 2PM App Guide





View full details
Google Home
Alexa

Customer Reviews

Based on 10 reviews
90%
(9)
0%
(0)
10%
(1)
0%
(0)
0%
(0)
100.0
I
Ian Barton
Shelly Plus 2PM

Shelly Plus 2PM is supposed to be the replacement for Shelly 2.5 used for Roller Shutters. It does that but the configuration is different. The most annoying difference is not being able to disable schedules if you go away for a few days. I’m not sure how I will get around that one.
Also they no longer refer to roller shutters as such. They call them “covers” which took a while to sort out. There is NOTHING in the accompanying instruction showing how to configure the device for roller shutters. I stumbled across something on YouTube.

Thank you for your review and feedback! We understand the frustration you're experiencing with the configuration differences between the Shelly Plus 2PM and the Shelly 2.5, particularly when it comes to schedules and the terminology change. To help with your inquiry, we've put together a guide that explains the key differences and how to configure the device effectively for roller shutters (now referred to as 'covers'). You can check out the article using this link: www.ozsmartthings.com.au/blogs/news/what-are-the-key-differences-between-shelly-plus-2pm-and-shelly-2-5-for-roller-shutter-control-and-how-can-users-effectively-configure-the-device

We hope this helps clarify the setup and provides you with the guidance you need!

D
Darren Walker

Shelly Plus 2PM

S
Steven Mackenzie
Typical Shelly.

The Shelly Plus 2PM is simple to install, quick to configure and integrates seamlessly with Home Assistant. It has the option to integrate with Shelly Cloud, but is also perfectly functional in a local only setup, isolated from the internet. Input and output configuration are flexible. A quality product!

A
Asil Hakimzada

Good product

L
Lukasz Nowak
Great product. Fast delivery

This device works great for home automation. Good supplier of smart devices for home. Quick delivery, often received within a week of purchase. Would recommend.
